Downlights
Downlights
See which SOLAIS downlight family fits your specification needs!
COMMERCIAL

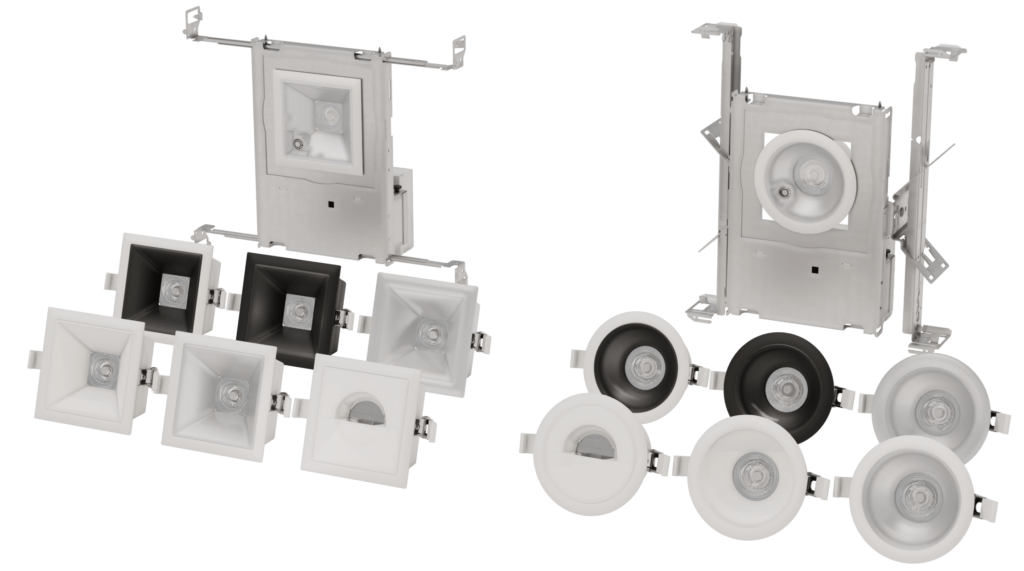

BARITONE
Dependable and reliable, a commercial-grade fixed downlight family that's perfect for high-volume projects like hotels and multi-family applications.
SPECIFICATION

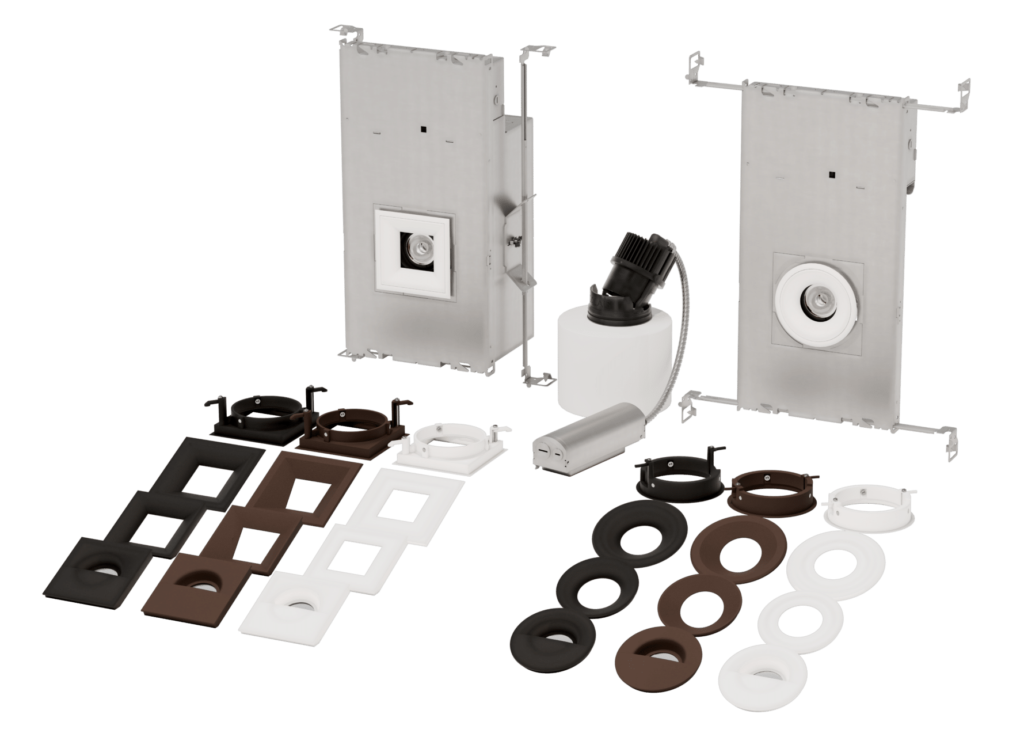

STRETTA ARM
An adjustable downlight family that breaks the rules with a premium fixture at an affordable price, giving you the versatility you need to design any space.
ARCHITECTURAL
STACCATO
A high-end adjustable downlight family that offers a sleek, minimalist design — making a statement while meeting the functional demands of designers,
Solais offers a versatile range of modular downlights designed to meet diverse commercial and architectural lighting needs. Our modular systems emphasize flexibility, performance, and the simplifying of maintenance.
GENERAL
Descriptions
Commercial downlights with a shallow installation height and non-conductive baffles, perfect for high-volume projects
In a world full of compromises, these spec-grade downlights break the rules with a premium fixture at an affordable price
This family of architectural-grade downlight fixtures offer a sleek, minimalist design that makes a statement.
Highlighted Features
Integrated EM Test Switch | Non-conductive Baffles | "Dead Front" Option
Adjustable | 40° aiming | Up to 55° cutoff | Field Paintable Trim
TBD
INSTALLATION
Shapes
Round, Square
Round, Square
Round, Square
Aperatures
4", 6"
2", 3", 4"
3", 4"
Installation Types
Remodel, New Construction
Remodel, New Construction, Chicago Plenum
New Construction ONLY, Chicago Plenum
Trim Styles
7/8" flange
1/2" Beveled Flange, 1/4" Microflange, Flangeless/Trimless, Flat Pinhole option on 2" (ST2Arm)
TBD
Installation Height
2-1/8" to 3-7/8"
4-3/4" to 5"
TBD
Ceiling Thickness
1/2" to 1-1/2"
1/2" to 1-3/8"
TBD
PERFORMANCE
Power Supply
120 - 277V Universal; DALI-2 Option
120 - 277V Universal; DALI-2 Option
120 - 277V Universal; DALI-2 Option
Lumen Packages
1000 lm, 10W | 1500 lm, 14W | 2000 lm, 19W | 2500 lm, 21W 3000 lm, 26W | 2500 lm, 33W | 4000 lm, 40W | 4500 lm, 46W
700 lm, 8W | 900 lm, 10W | 1200 lm, 12W | 1600 lm, 18W | 2000 lm, 24W
TBD
Distributions
Narrow Spot (15°) | Narrow Flood (25°) | Flood (40°) | Wide Flood (60°) | Very Wide Flood (95°) | Wall Wash
Very Narrow Spot (11°) | Narrow Spot (13°-17°) | Narrow Flood (22°-24°) | Flood (36°-38°) | Wide Flood (49°-55°) | Wall Wash
TBD
CRI Options
90+ CRI Standard
95 CRI Standard | 98+ CRI Option
95 CRI Standard | 98+ CRI Option
CCT Options
2700K, 3000K, 3500K, 4000K, 5000K
2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K
2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K
Controls
1% phase-cut and 0-10V dimming, 0.1% Logarithmic DALI-2/D4i dimming, Wireless Controls Available
1% phase-cut and 0-10V dimming, 0.1% Logarithmic DALI-2/D4i dimming, Wireless Controls Available
1% phase-cut and 0-10V dimming, 0.1% Logarithmic DALI-2/D4i dimming, Wireless Controls Available
Other Options
Amber/Wildlife | Dim-to-Warm (3000K to 1800K, 98 CRI)
Dim-to-Warm (3000K to 1800K, 98 CRI)
Tunable White | Dim-to-Warm (3000K to 1800K, 98 CRI)
Certifications
cETLus, Wet Location Rated, IC Rated Options
cULus, Title 24 and JA8 compliant, Wet Location with trim lens, IC and Spray Foam Rated Options
TBD
OTHER
Emergeny Backup
✅ Integrated Test Switch; Title 20 compliant
✅ Title 20 Compliant
✅ Title 20 Compliant
Standard Finishes
Perfect White, Black, Semi-diffused
Perfect White, Black, Bronze, Silver, Field Paintable
Perfect White, Black, Bronze, Silver, Field Paintable
Accessories
❌
Honeycomb Louver, Linear Spread, Solite, Clear and Wide Flood Lenses; Custom colored lenses available
Honeycomb Louver, Linear Spread, Silite, Clear and Wide Flood Lenses, Frosted Acrylic Decorative Drop; Custom colored lenses available
INSTALLATIONS

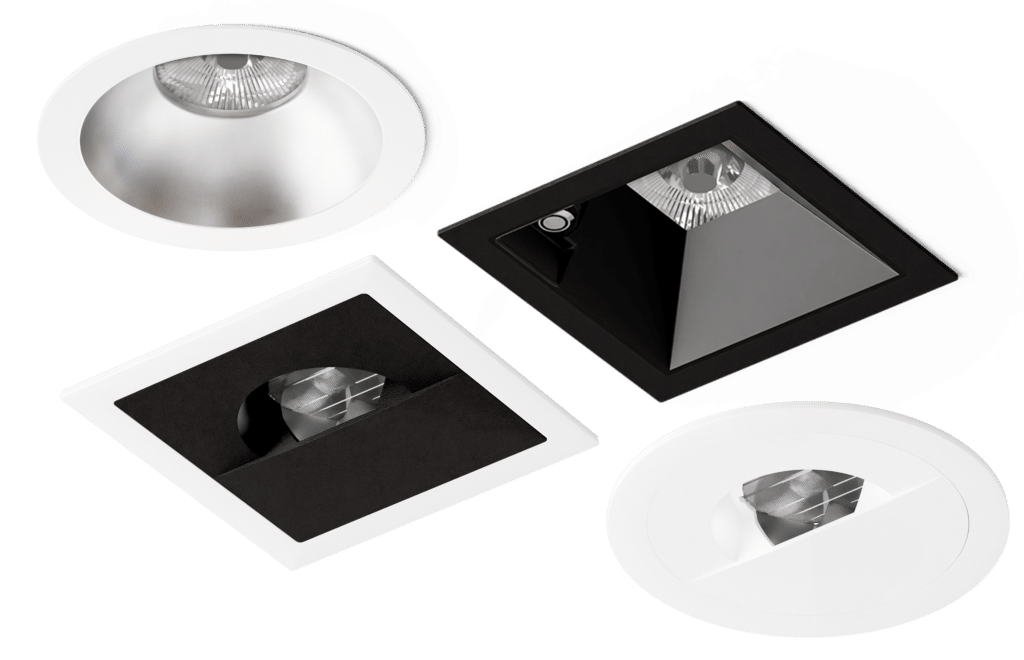

BARITONE BDLR6

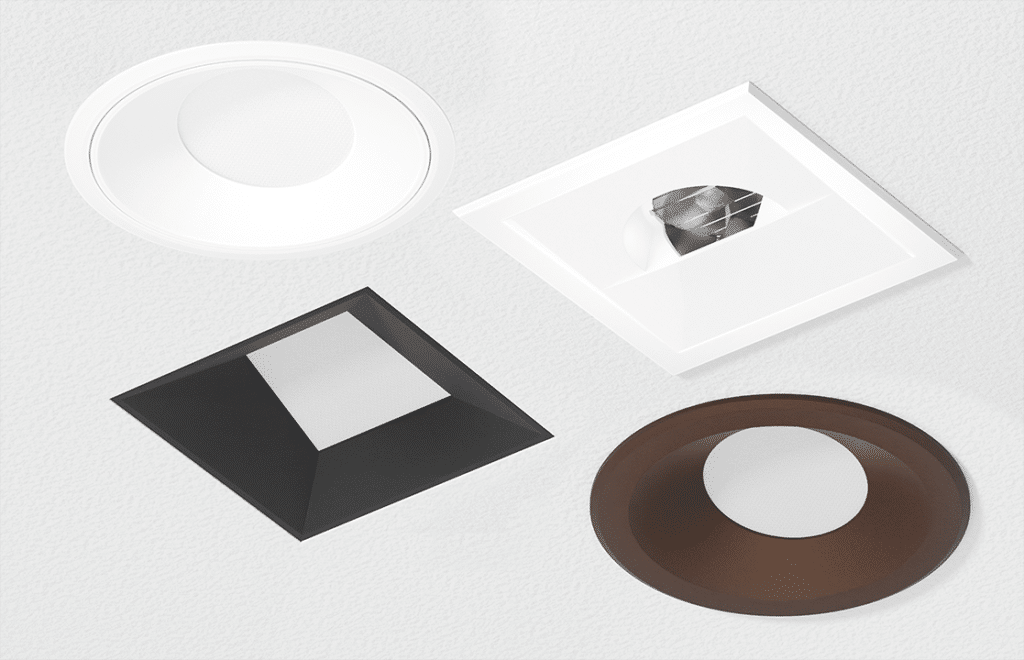

Stretta Arm ST2Arm
Project Manager
BARITONE BDLR4
STRETTA ARM ST4Arm
Senior Marketer
WIRELESS CONTROLS
Explore SOLAIS product families that feature compatibility with popular control systems!
